How many layers can a PCB board have at most?

  As the basic component of electronic products, the complexity and number of layers of PCB boards are also increasing. For the majority of electronic enthusiasts and practitioners, the number of layers of PCB boards is not only related to the performance and stability of electronic products, but also represents the technical level of the current electronic process. So, how many layers can a PCB board have at most?

  In the past, double-layer boards and four-layer boards were the mainstream PCB boards. This was mainly because the electronic systems at that time were relatively simple and the requirements for circuit boards were also low. However, with the increasing complexity and integration of modern electronic products, double-layer and four-layer boards can no longer meet the demand. Therefore, multi-layer PCB boards emerged and gradually became mainstream.

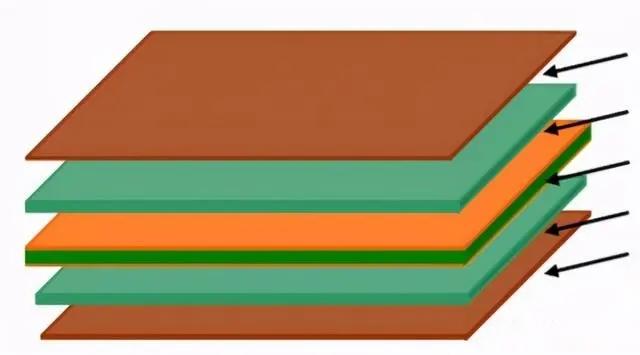

  At present, the number of layers of PCB boards has developed from the original double and four layers to the current 68 layers or even hundreds of layers. However, the determination of the number of layers in actual production requires comprehensive consideration of many factors. Generally speaking, multi-layer PCB boards are mainly concentrated in 8 layers, 16 layers, 32 layers, etc. With these layers, PCB boards can not only meet the needs of most complex electronic systems, but also achieve a good balance between cost and production difficulty.

  Of course, the additional layers are not without cost. As the number of PCB layers increases, the production cost will increase accordingly, and the design difficulty will also increase. In addition, problems such as interlayer peeling and signal interference are more likely to occur during the production process of multi-layer boards, which requires higher production technology and stricter quality control.

  It is worth mentioning that although the number of layers of PCB boards is constantly increasing, not all electronic products require the use of multi-layer boards. For some simple and low-cost application scenarios, double-layer or four-layer boards still have high practical value. Therefore, when selecting the number of PCB board layers, you need to weigh it based on your specific needs and budget.

  To sum up, the number of layers of PCB boards has developed from double and four layers in the past to 68 or even hundreds of layers now. At present, the mainstream multi-layer PCB boards are mainly concentrated in 8 layers, 16 layers, 32 layers, etc. When selecting the number of PCB board layers, factors such as product complexity, integration, and cost need to be comprehensively considered.
