What is Aluminium PCB Manufacturing Process?

Aluminium PCBs (Printed Circuit Boards) are widely used in various industries due to their superior heat dissipation properties, durability, and lightweight characteristics. The aluminium PCB manufacturing process is crucial for producing high-quality boards that meet the demands of modern electronic applications. This article will break down the key stages involved in manufacturing aluminium PCBs and explain why these boards are essential for industries such as LED lighting, automotive, and power electronics.

1. Material Preparation

The process begins with selecting the right aluminium PCB materials. Aluminium PCBs consist of three main layers: an aluminium base layer, a dielectric layer, and a copper conducting layer. The aluminium base provides excellent heat dissipation and structural support, while the copper layer acts as the primary conductor.

2. Drilling and Layer Formation

Once the materials are prepared, the drilling process takes place to create holes and pathways for electrical connections. CNC machines are used for precision drilling, ensuring that the holes align perfectly with the circuit layout. The dielectric layer, which insulates the copper and aluminium base, is then bonded to the base through a lamination process.

3. Image Transfer

The next step in the aluminium PCB manufacturing process is image transfer. This step involves transferring the circuit pattern onto the copper layer. Typically, this is done using a photosensitive film and UV light exposure, which hardens the circuit pattern on the board. After exposure, the board undergoes a developing process to remove unexposed photoresist, leaving only the circuit design.

4. Etching

Etching is used to remove excess copper, leaving behind the desired circuit pattern. Chemical etching solutions selectively dissolve unwanted copper, ensuring only the circuit paths remain. This step is crucial for maintaining the integrity and accuracy of the aluminium PCB.

5. Solder Mask Application

A solder mask is then applied to protect the circuit from environmental damage and prevent solder bridges between conductors during component assembly. The solder mask is typically green, but other colors are also available depending on design preferences.

6. Surface Finishing

Surface finishing ensures that the copper pads on the PCB are protected and ready for soldering. Common surface finishes for aluminium PCBs include HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), and OSP (Organic Solderability Preservative).

7. Assembly and Final Testing

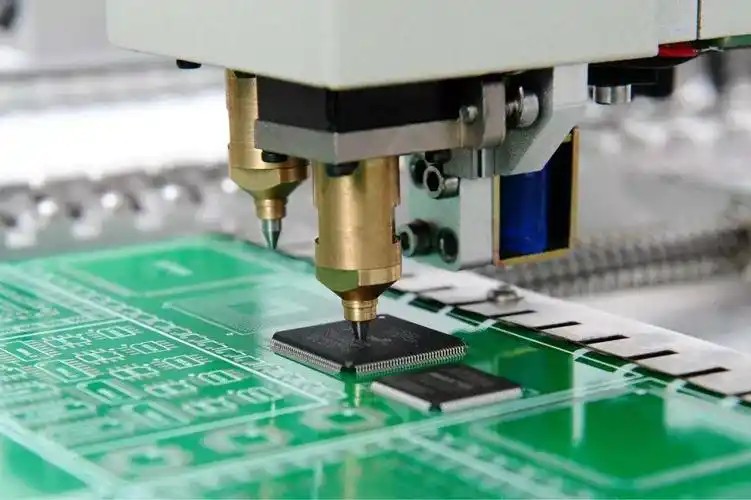

Once the manufacturing process is complete, components are assembled onto the aluminium PCB using SMT (Surface Mount Technology) or THT (Through-Hole Technology). The assembled boards undergo rigorous testing, including electrical and functional tests, to ensure they meet quality standards and perform as expected.

Benefits of Aluminium PCBs

• Excellent Heat Dissipation: The aluminium base efficiently transfers heat away from components, preventing overheating and improving device longevity.

• High Durability: Aluminium PCBs are more robust and can withstand physical stress better than traditional fibreglass boards.

• Lightweight Design: The use of aluminium reduces the overall weight of the PCB, making it ideal for applications where weight is a concern.

Applications of Aluminium PCBs

Aluminium PCB manufacturing has led to advancements in various sectors:

• LED Lighting: Due to their superior heat management, aluminium PCBs are ideal for high-power LED systems.

• Automotive Industry: Used in vehicle lighting and electronic control systems for their durability and heat resistance.

• Power Electronics: Suitable for applications where power conversion and thermal management are crucial.

Conclusion:

Understanding the aluminium PCB manufacturing process is essential for industries aiming to leverage its benefits for high-performance applications. The combination of efficient heat dissipation, lightweight properties, and durability makes aluminium PCBs a popular choice for advanced electronic solutions.
